High-tech Blue Laser Hybrid Welding Machine for Copper / Gold And Silver Materials

Name: High-tech Blue Laser Hybrid Welding Machine for Copper / Gold And Silver Materials
Brand: Shenzhen Hanwei Laser Equipment Co., Ltd.
SKU: HW-B
Price: 1.00 USD
Availability: InStock

ブランド名:	HanWei
モデル番号:	HW-B
Moq:	1 Set
価格:	USD / Set
支払条件:	T/T
供給能力:	2000 Sets / year

詳細情報

製品説明

詳細情報

Place of Origin:

Shenzhen, China

証明:

レーザーパワー:

1000W

ヘッド構造:

T / f / y

動作温度（℃）:

5-40

ガスタイプ:

共軸 /サイドガス

溶接材料:

銅 /金 /銀

波長（nm）:

445nm

冷却方法:

水冷

コア直径:

200μm / 0.22 Na

Packaging Details:

Export Plywood Packing

Supply Ability:

2000 Sets / year

ハイライト:

blue laser welding machine for copper

hybrid laser welder for gold

industrial silver welding laser machine

製品説明

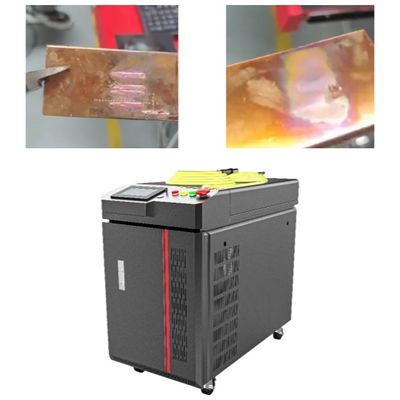

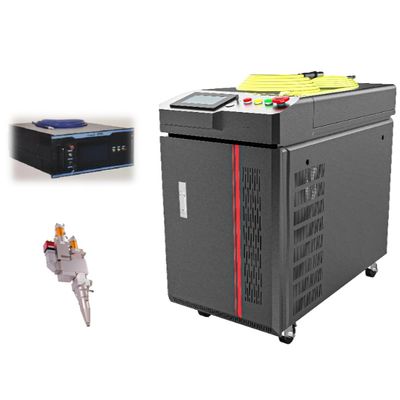

High-tech Blue Laser Hybrid Welding Machine for Copper / Gold And Silver Materials

High-tech Blue Laser Hybrid Welding Machine for Copper / Gold And Silver Materials Description:

Hanwei's blue laser welding machine, developed alongside leading products from Europe, America, and Japan, boasts independently innovated core technologies such as a blue laser source, blue laser control system, and a variety of specialized blue laser welding heads. This pioneering system ushers in a new chapter in laser welding for highly reflective materials.

Tailor-made for welding copper, silver, gold, and other reflective metals, it capitalizes on the distinctive ultra-high absorption properties of the blue laser spectrum (with reflective materials absorbing over 70% of blue wavelengths). Its outstanding benefits in processing high-reflectivity materials include spatter-free performance, unparalleled stability, excellent weld quality, and the groundbreaking ability to achieve double-sided formation via single-sided welding.

High-tech Blue Laser Hybrid Welding Machine for Copper / Gold And Silver Materials 0

High-tech Blue Laser Hybrid Welding Machine for Copper / Gold And Silver Materials Features:

1.Self-developed, designed and manufactured the complete chain from laser source,control system and laser welding head.

2.Post-welding surfaces exhibit smoothness, fullness, and an aesthetically refined appearance.

3.The welding process generates minimal spark spatter while delivering high-quality welds with exceptional consistency.
4.Used for welding materials with high reflectivity to laser such as copper, gold, silver, etc.

High-tech Blue Laser Hybrid Welding Machine for Copper / Gold And Silver Materials Technical Parameters:

Model	HW-B
Laser Power	1000 W
Wavelength(um)	445 nm
Head Option	Blue Laser Hybrid
Laser Core	50um / 100um
Head Weigh	4 Kg
Power Stability	± 0.5 %
Laser Beam	Stationary / Wobble
Cooling Method	Water Cooling
Machine Size	1000450850mm
Power Range	10-100
Power Instability (%)	＜ 3
Core Diameter	200 μm / 0.22 NA

High-tech Blue Laser Hybrid Welding Machine for Copper / Gold And Silver Materials Application:

1.New Energy Resources - Battery Busbar with Copper or Aluminium.
2.Computer,Communication,Consumer Electronics - 3C Industry.
3.Semiconductor Industry.
4.Jewelry industry.
5.Automobile industry.

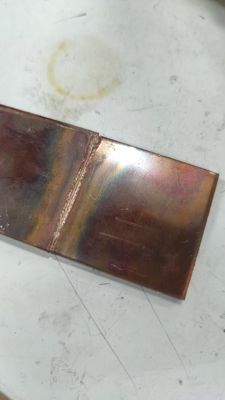

High-tech Blue Laser Hybrid Welding Machine for Copper / Gold And Silver Materials Sample:

Shen Zhen HanWei Laser Enterprise and Feature:

Shenzhen Hanwei Laser Equipment Co., Ltd. provides a wide range of laser devices, encompassing both desktop and portable types. These systems adopt advanced fiber, pulsed or continuous-wave, blue laser, diode laser, and hybrid laser technologies, all carefully crafted to meet customers' distinct requirements. Moreover, the company offers customized solutions for specific applications along with training and support services, ensuring that clients can fully tap into the potential of their laser systems. With branches and subsidiaries spanning Europe, North America, Asia, and the Middle East, Hanwei Laser has established a robust international presence, serving clients across the globe.

Hanwei Laser's primary focus is on the field of laser welding. The company is committed to providing cutting-edge laser welding technology to international laser integration enterprises, with the goal of supplying high-quality welding technology to all integrators. As one of the relatively few national high-tech specialized and innovative enterprises worldwide, it specializes in the research and development, manufacturing, and distribution of a wide range of welding lasers, laser control systems, laser optical systems, and laser welding processes throughout the entire industrial chain.
