Blue Laser Hybrid Welding Machine for Copper with High Reflectivity to Laser

Name: Blue Laser Hybrid Welding Machine for Copper with High Reflectivity to Laser
Brand: Shenzhen Hanwei Laser Equipment Co., Ltd.
SKU: HW-B
Price: 1.00 USD
Availability: InStock

ブランド名:	HanWei
モデル番号:	HW-B
Moq:	1セット
価格:	USD / Set
支払条件:	T/T
供給能力:	2000セット /年

詳細情報

製品説明

詳細情報

起源の場所:

中国深Shenzhen

証明:

レーザーパワー:

1000W

波長（nm）:

445nm

ヘッド構造:

T / f / y

ガスタイプ:

共軸 /サイドガス

コア直径:

200μm / 0.22 Na

溶接材料:

銅 /金 /銀

冷却方法:

水冷

動作温度（℃）:

5-40

パッケージの詳細:

合板の梱包をエクスポートします

供給の能力:

2000セット /年

ハイライト:

blue laser welding machine for copper

hybrid laser welder for high reflectivity

industrial copper laser welding machine

製品説明

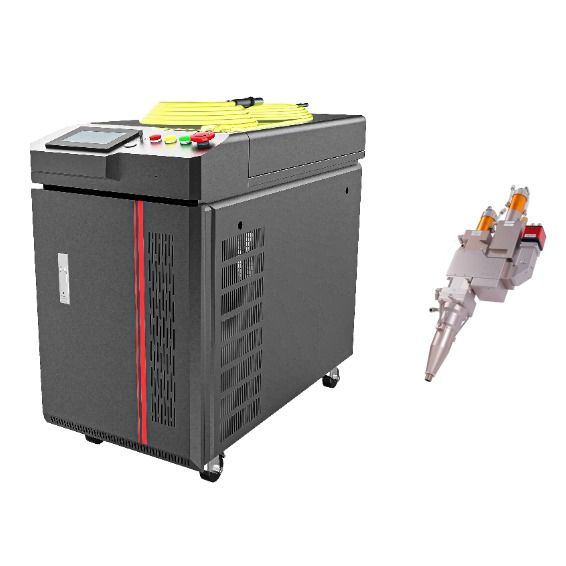

Blue Laser Hybrid Welding Machine for Copper with High Reflectivity to Laser

Blue Laser Hybrid Welding Machine for Copper with High Reflectivity to Laser Description:

Hanwei blue laser welding machine, developed in parallel with counterparts in Europe, the United States, and Japan, features independently innovated core technologies including a blue laser source, blue laser control system, and multiple dedicated welding heads for blue lasers. This groundbreaking system pioneers a new era in laser welding for highly reflective materials. Specifically designed for welding copper, silver, gold, and other reflective metals, it leverages the unique ultra-high absorption characteristics of blue laser spectrum (over 70% absorption rate for reflective materials in blue wavelengths). Its exceptional advantages in high-reflectivity material processing include spatter-free operation, unmatched stability, superior weld quality, and the revolutionary capability of achieving dual-side formation through single-sided welding.

Blue Laser Hybrid Welding Machine for Copper with High Reflectivity to Laser 0

Blue Laser Hybrid Welding Machine for Copper with High Reflectivity to Laser Features:

1.Self-developed, designed and manufactured the complete chain from laser source,control system and laser welding head.

2.Used for welding materials with high reflectivity to laser such as copper, gold, silver, etc.

3.The welding process generates minimal spark spatter while delivering high-quality welds with exceptional consistency.
4.Post-welding surfaces exhibit smoothness, fullness, and an aesthetically refined appearance.

Blue Laser Hybrid Welding Machine for Copper with High Reflectivity to Laser Technical Parameters:

Model	HW-B
Laser Power	1000 W
Wavelength(um)	445 nm
Head Option	Blue Laser Hybrid
Laser Core	50um / 100um
Head Weigh	4 Kg
Focuses	Option
Laser Beam	Stationary / Wobble
Cooling Method	Water Cooling
Machine Size	1000450850mm
Power Range	10-100
Power Instability (%)	＜ 3
Core Diameter	200 μm / 0.22 NA

Blue Laser Hybrid Welding Machine for Copper with High Reflectivity to Laser Application:

1.New Energy Resources - Battery Busbar with Copper or Aluminium.
2.Computer,Communication,Consumer Electronics - 3C Industry.
3.Semiconductor Industry.

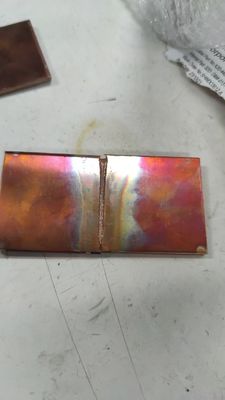

Blue Laser Hybrid Welding Machine for Copper with High Reflectivity to Laser Sample:

Shen Zhen HanWei Laser Enterprise and Feature:

Shenzhen Hanwei Laser Equipment Co., Ltd. offers an extensive selection of laser equipment, including both desktop and portable models. These systems utilize sophisticated fiber, pulsed or continuous-wave, blue laser, diode laser, and hybrid laser technologies, all meticulously designed to cater to customers' unique needs. Furthermore, the company delivers tailored solutions for specific applications as well as training and support services, guaranteeing that clients can fully utilize the potential of their laser systems. Boasting branches and subsidiaries across Europe, North America, Asia, and the Middle East, Hanwei Laser has built a strong international footprint, serving clients worldwide.

Hanwei Laser's main focus lies in the field of laser welding. The company is dedicated to providing state-of-the-art laser welding technology to international laser integration enterprises, aiming to supply high-caliber welding technology to all integrators. As one of the relatively few national high-tech specialized and innovative enterprises globally, it specializes in the research and development, manufacturing, and distribution of a wide variety of welding lasers, laser control systems, laser optical systems, and laser welding processes throughout the entire industrial chain.
